Linux内核:从底层向上分析驱动程序层+链路层
作者:网络转载 发布时间:[ 2012/12/25 10:21:35 ] 推荐标签:
dev_init()网络设备的初始化函数如下:
/*
* Initialize the DEV module. At boot time this walks the device list and
* unhooks any devices that fail to initialise (normally hardware not
* present) and leaves us with a valid list of present and active devices.
*
* The PCMCIA code may need to change this a little, and add a pair
* of register_inet_device() unregister_inet_device() calls. This will be
* needed for ethernet as modules support.
*/
void dev_init(void)
{
struct device *dev, *dev2;
/*
* Add the devices.
* If the call to dev->init fails, the dev is removed
* from the chain disconnecting the device until the
* next reboot.
*/
dev2 = NULL;
for (dev = dev_base; dev != NULL; dev=dev->next) //循环移除设备由璞傅?ev_base指向的网络设备链表
{
if (dev->init && dev->init(dev)) //如果设备有初始化函数并且初始化失败,则从链表摘除设备(init()函数成功返回0)
{
/*
* It failed to come up. Unhook it.这个函数还挺有技巧性的,从默认配置的设备中扫描不存在的设备,将其移除
*/
if (dev2 == NULL)
dev_base = dev->next;
else
dev2->next = dev->next;
}
else
{
dev2 = dev;
}
}
}
这里我们看一下dev_base这个队列是如何定义的,这里我们仅仅看eth网卡的定义方式即可
/* "eth0" defaults to autoprobe (== 0), other use a base of 0xffe0 (== -0x20),
which means "don't probe". These entries exist to only to provide empty
slots which may be enabled at boot-time. */
static struct device eth3_dev = {
"eth3", 0,0,0,0,0xffe0 /* I/O base*/, 0,0,0,0, NEXT_DEV, ethif_probe };
static struct device eth2_dev = {
"eth2", 0,0,0,0,0xffe0 /* I/O base*/, 0,0,0,0, eth3_dev, ethif_probe };
static struct device eth1_dev = {
"eth1", 0,0,0,0,0xffe0 /* I/O base*/, 0,0,0,0, eth2_dev, ethif_probe };
static struct device eth0_dev = {
"eth0", 0, 0, 0, 0, ETH0_ADDR, ETH0_IRQ, 0, 0, 0, eth1_dev, ethif_probe };
# undef NEXT_DEV
# define NEXT_DEV (eth0_dev)

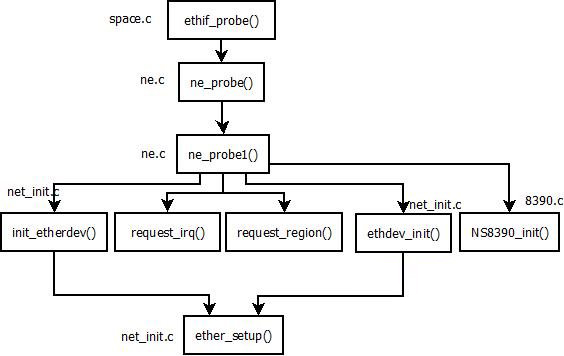

可以看出eth系列网卡设备的init函数定义为ethif_probe(),该函数会调用具体网卡的探测函数,我们还是以 NS8390 ethernet网卡为例来分析,该网卡的驱动实现文件为drivers/net/ne.c
ethif_probe()函数会调用函数ne_probe()探测函数,而该函数对设备地址进行检查后调用ne_probe1()函数,具体工作有ne_probe1()函数完成。
