近写MFC的程序,想在对话框里实现窗口的任意分割。现在网络资料一大抄,找个东西实在麻烦。总算这个很简单,很快搞定了,写下来做个笔记。
  个人认为简单问题好是直接贴源代码,一看明白,说来说去反而弄不清楚,那我少废话了,自己看吧,注释很清楚。

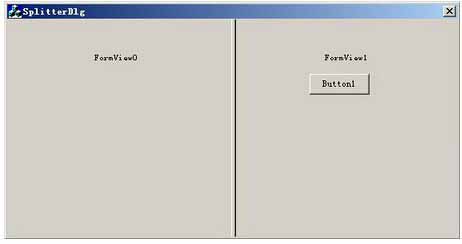

  先来张图片

  1. 新建一个MFC对话框程序MySplitterDlg。 再插入两个Dialog资源 ,这里一定要选择IDD_FORMVIEW类别的对话框,分别新建类CMyFormView0 和CMyFormView1,基类别选CDialog,一定要选择CFormView。
  2. CMySplitterDlg中增加WM_CREATE的消息响应,编辑OnCreate()
int CMySplitterDlg::OnCreate(LPCREATESTRUCT lpCreateStruct)
{
if (CDialog::OnCreate(lpCreateStruct) == -1)
return -1;
// Because the CFRameWnd needs a window class, we will create a new one. I just copied the sample from MSDN Help.
// When using it in your project, you may keep CS_VREDRAW and CS_HREDRAW and then throw the other three parameters.
//需要注册窗口类
CString strMyClass = AfxRegisterWndClass(CS_VREDRAW | CS_HREDRAW,
::LoadCursor(NULL, IDC_ARROW),    (HBRUSH) ::GetStockObject(WHITE_BRUSH),
::LoadIcon(NULL, IDI_APPLICATION));
// Create the frame window with "this" as the parent
m_pMyFrame = new CFrameWnd;
m_pMyFrame->Create(strMyClass,"", WS_CHILD,   CRect(0,0,300,300), this);
m_pMyFrame->ShowWindow(SW_SHOW);
// and finally, create the splitter with the frame as the parent
m_cSplitter.CreateStatic(m_pMyFrame,1, 2); //在Frame里切分视图窗口为1×2,是一行两列
m_cSplitter.CreateView(0,0, RUNTIME_CLASS(CMyFormView0),   CSize(100,100), NULL);//第一行一列
m_cSplitter.CreateView(0,1, RUNTIME_CLASS(CMyFormView1), CSize(100,100), NULL);//第一行二列
return 0;
}
  3. 在CMySplitterDlg::OnInitDialog()中显示Frame
  int CMySplitterDlg::OnInitDialog()
  {
  CDialog::OnInitDialog();
  GetWindowRect(&cRect);
  ScreenToClient(&cRect);
  m_pMyFrame->MoveWindow(&cRect);
  m_pMyFrame->ShowWindow(SW_SHOW);
  return TRUE;
  }
